RF Adapters
RF Adapters
2.4 mm Adapters
%20to%202_4%20mm%20(F).JPG)
%20to%202_4%20mm%20(F).JPG)
%20to%202_4%20mm%20(M).JPG)
|
Type |
Gender |
Description |
Frequency |
R.L |
|
2.4 mm |
M |

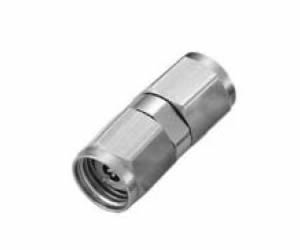

2.4 mm (M) to 2.4 mm (M) |
50 GHz |
24dB |
|
F |

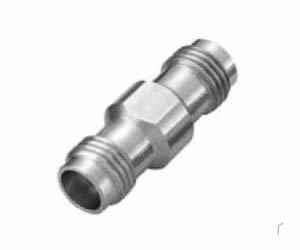

2.4 mm (F) to 2.4 mm (F) |
|||
|
M/F |

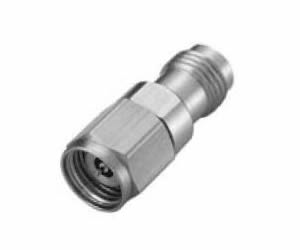

2.4 mm (M) to 2.4 mm (F) |
|||
|
M |
2.4 mm (M) to 2.92 mm (M) |
40 GHz |
24dB |
|
|
F |
2.4 mm (F) to 2.92 mm (F) |
|||
|
M/F |
2.4 mm (M) to 2.92 mm (F) |
|||
|
F/M |
2.4 mm (F) to 2.92 mm (M) |
|||
|
M |
2.4 mm (M) to 3.5mm (M) |
34 GHz |
24dB |
|
|
F |
2.4 mm (F) to 3.5 mm (F) |
|||
|
M/F |
2.4 mm (M) to 3.5mm (F) |
|||
|
F/M |
2.4 mm (F) to 3.5 mm (M) |
SMA, N, BNC, TRB Adapters
%20to%20BNC%20(F).JPG)
%20to%20TRB%20(F).JPG)
%20to%20BNC%20(F).JPG)
%20to%20BNC%20(M).JPG)
%20to%20N%20(F).JPG)
%20to%20N%20(F).JPG)
%20to%20N%20(M).JPG)
%20to%20N%20(F).JPG)
%20to%20N%20(M).JPG)
%20to%20N%20(F).JPG)
%20to%20N%20(M).JPG)
%20to%20SMA%20(M).JPG)
%20to%20SMA%20(F).JPG)
| Description | Frequency Range |
| SMA (M) to SMA (M) | 0-18GHz |
| SMA (F) to SMA (F) | |
| SMA (M) to SMA (F) | |
| SMA (M) to SMB (M) | |
| SMA (F) to SMB (F) | |
| SMA (M) to SMB (F) | |
| SMA (F) to SMB (M) | |
| SMA (M) to SMC (M) | |
| SMA (F) to SMC (F) | |
| SMA (M) to SMC (F) | |
| SMA (F) to SMC (M) | |
| SMA (M) to N (M) | |
| SMA (F) to N (F) | |
| SMA (M) to N (F) | |
| SMA (F) to N (M) | |
| SMA (M) to BNC (M) | |
| SMA (F) to BNC (F) | |
| SMA (M) to BNC (F) | |
| SMA (F) to BNC (M) | |
| N (M) to N (M) | 0-18GHz |
| N (F) to N (F) | |
| N (M) to N (F) | |
| N (M) to BNC (M) | |
| N (F) to BNC (F) | |
| N (M) to BNC (F) | |
| N (F) to BNC (M) | |
| BNC (M) to BNC (M) | 0-4 GHz |
| BNC (F) to BNC (F) | |
| BNC (M) to BNC (F) | |
| BNC (F) to TRB (F) | |
| SMA End Launch Jack up to 20GHz | 0-18GHz |
| SMA(M) to I-Pex(F) | |
| SMA (Quick M) to SMA (F) | |
| SMA (M,R/P) to SMA (F) | |
| Terminator, SMA (M), 50 ohm | |
| Terminator, SMP (F), 50 ohm |
| Description | Frequency Range |
| SMA (M) to SMB (M) | 0 -4 GHz |
| SMB (F) to SMB (F) | |
| SMB (M) to N (M) | |
| SMB (F) to BNC (M) | |
| SMB(M) to BNC (F) | |
| SMB (F) to BNC (F) | |
| SMC (M) to SMC (M) (50 ohm) | 0-10 GHz |
| SMC (F) to SMC (F) (50 ohm) | |
| SMC (M) (50 ohm) to N (M) | |
| SMC (F) (50 ohm) to N (M) | |
| SMC (M) (50 ohm) to BNC (M) | |
| SMC (F) (50 ohm) to BNC (F) |
RF Adapters-N (75 ohm),BNC (75 ohm),F type (75 ohm)
%20to%20F%20(M)%2075ohm.JPG)
%20to%20F%20(F)%2075%20ohm.JPG)
%20to%20F%20(M)%2075%20ohm.JPG)
%20to%20F%20(M)%2075%20ohm.JPG)
%20to%20BNC%20(F)%2075%20ohm.JPG)
%20to%20BNC%20(M)%2075%20ohm.JPG)
%20to%20F%20(F)%2075%20ohm.JPG)
%20to%20F%20(M)%2075%20ohm.JPG)
%20to%20BNC%20(F)%2075%20ohm.JPG)
%20to%20BNC%20(M)%2075%20ohm.JPG)
%20to%20F%20(F)%2075%20ohm.JPG)
%20to%20F%20(M)%2075%20ohm.JPG)
|
Description |
| N (M) to N (M) 75ohm |
| N (M) to N (F) 75 ohm |
| N (F) to N (F) 75 ohm |
| N (M) to BNC (M) 75 ohm |
| N (M) to BNC (F) 75 ohm |
| N (F) to BNC (M) 75 ohm |
| N (F) to BNC (F) 75 ohm |
| N (M) to F (M) 75 ohm |
| N (M) to F (F) 75 ohm |
| N (F) to F (M) 75 ohm |
| N (F) to F (F) 75 ohm |
| BNC (M) to BNC (M) 75 ohm |
| BNC (M) to BNC (F) 75 ohm |
| BNC (F) to BNC (F) 75 ohm |
| BNC (M) to F (M) 75 ohm |
| BNC (M) to F (F) 75 ohm |
| BNC (F) to F (M) 75ohm |
| BNC (F) to F (F) 75 ohm |
| F (M) to F (M) 75 ohm |
| F (M) to F (F) 75 ohm |
| F (F) to F (F) 75 ohm |
| N (M) to SMB (F) 75 ohm |

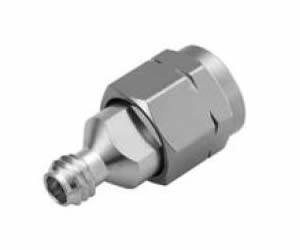

1.0 mm Adapters
%20to%201_0%20mm%20(F).JPG)
%20to%201_85%20mm%20(F).JPG)
%20to%201_85%20mm%20(M).JPG)
%20to%201_0%20mm%20(F).JPG)
%20to%201_85%20mm%20(F).JPG)
%20to%201_85%20mm%20(M).JPG)
|
Type |
Gender |
Description |
Frequency |
R.L |
|
1.0mm |
M |
1.0 mm (M) to 1.0 mm (M) |
110 GHz |
24dB DC to 50 GHz |
|
F |

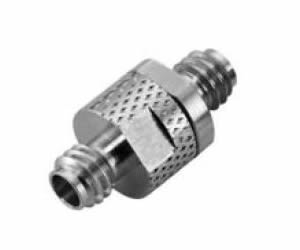

1.0 mm (F) to 1.0 mm (F) |
110 GHz |
||
|
M/F |

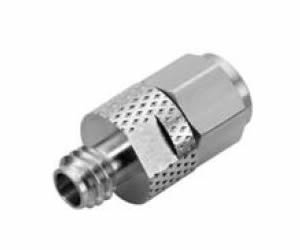

1.0 mm (M) to 1.0 mm (F) |
110 GHz |
||
|
1.85mm |
M |

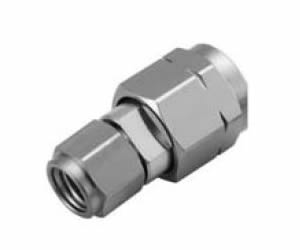

1.0 mm (M) to 1.85 mm (M) |
67 GHz |
20dB |
|
F |

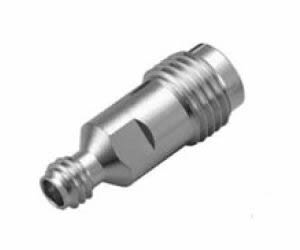

1.0 mm (F) to 1.85 mm (F) |
67 GHz |
||
|
M/F |
1.0 mm (M) to 1.85 mm (F) |
67 GHz |
||
|
2.4mm |
M |
1.0 mm (M) to 2.4 mm (M) |
50 GHz |
20dB |
|
F |
1.0 mm (F) to 2.4 mm (F) |
50 GHz |
||
|
M/F |
1.0 mm (M) to 2.4 mm (F) |
50 GHz |
||
|
F/M |
1.0 mm (F) to 2.4 mm (M) |
50 GHz |
1.85 mm Adapters
%20to%201_85%20mm%20(F).JPG)
%20to%201_85%20mm%20(F).JPG)
|
Type |
Gender |
Description |
Frequency |
R.L |
|
1.85mm |
M |
1.85 mm (M) to 1.85 mm (M) |
67 GHz |
22dB |
|
F |

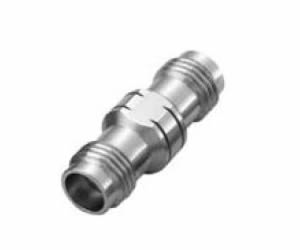

1.85 mm (F) to 1.85 mm (F) |
|||
|
M/F |

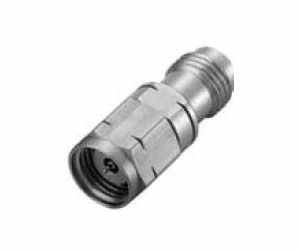

1.85 mm (M) to 1.85 mm (F) |
|||
|
2.4mm |
M |
1.85 mm (M) to 2.4 mm (M) |
50 GHz |
23dB |
|
F |
1.85 mm (F) to 2.4 mm (F) |
|||
|
M/F |
1.85 mm (M) to 2.4 mm (F) |
|||
|
F/M |
1.85 mm (F) to 2.4 mm (M) |
|||
|
2.92mm |
M |
1.85 mm (M) to 2.92 mm (M) |
40 GHz |
23dB |
|
F |
1.85 mm (F) to 2.92 mm (F) |
|||
|
M/F |
1.85 mm (M) to 2.92 mm (F) |
|||
|
F/M |
1.85 mm (F) to 2.92 mm (M) |
|||
|
3.5mm |
M |
1.85 mm (M) to 3.5 mm (M) |
34 GHz |
23dB |
|
F |
1.85 mm (F) to 3.5 mm (F) |
|||
|
M/F |
1.85 mm (M) to 3.5 mm (F) |
|||
|
F/M |
1.85 mm (F) to 3.5 mm (M) |
2.92 mm, 3.5 mm, N and BNC Adapters
%20to%202_92%20mm%20(F).JPG)
%20to%202_92%20mm%20(F).JPG)
%20to%202_92%20mm%20(M).JPG)
%20to%203_5%20mm%20(F).JPG)
%20to%20BNC%20(M).JPG)
%20to%203_5%20mm%20(F).JPG)
%20to%203_5%20mm%20(M).JPG)
|
Gender |
Description |
Frequency |
R.L |
|
M |

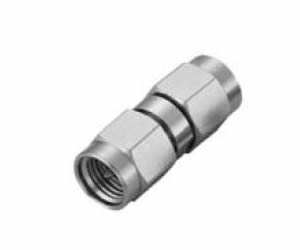

2.92 mm (M) to 2.92 mm (M) |
40 GHz |
32dB |
|
F |

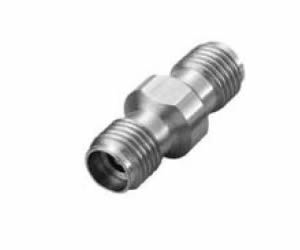

2.92 mm (F) to 2.92 mm (F) |
||
|
M/F |

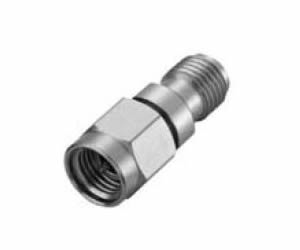

2.92 mm (M) to 2.92 mm (F) |
||
|
M |

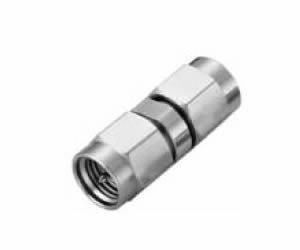

3.5 mm (M) to 3.5 mm (M) |
34 GHz |
32dB |
|
F |

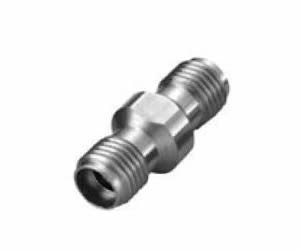

3.5 mm (F) to 3.5 mm (F) |
||
|
M/F |

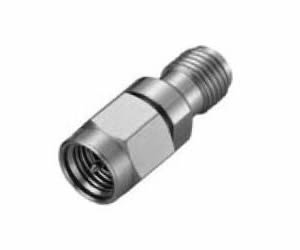

3.5 mm (M) to 3.5 mm (F) |
||
|
M |
3.5 mm (M) to N (M) |
18 GHz |
28dB |
|
F |
3.5 mm (F) to N (F) |
||
|
M/F |
3.5 mm (M) to N (F) |
||
|
F/M |
3.5 mm (F) to N (M) |
||
|
F/M |
3.5 mm (F) to BNC (M) |
18 GHz |
